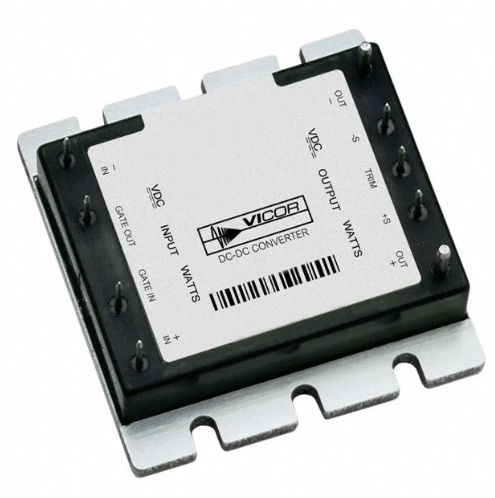

Under the current trend of electronic devices becoming increasingly miniaturized and efficient, power management technology has become a key factor in determining product performance. Today, let's talk about a power module that has attracted much attention in fields such as industrial control and communication equipment - VI-JW0-MW. As a star product of Vicor's MiniMod series, this isolated DC-DC converter is redefining the industry's perception of efficient power solutions with its outstanding technical parameters and reliability.

　　In-depth analysis of core technical parameters

　　The most notable technical indicator of VI-JW0-MW is its rated power output capacity of 100W. Simply put, this small module can stably provide 100 watts of power, which is a rather outstanding performance among similar products. Its input voltage range is very wide, and it can operate normally from 18V to 36V. This means that it can adapt to various power supply environments and will not be affected by fluctuations in input voltage in terms of output stability.

　　In terms of output, VI-JW0-MW provides a stable voltage of 5V and a maximum output current of up to 20A. For instance, this is like a precise voltage regulator that ensures the output remains at an accurate level of 5V no matter how the input changes. What is even more worth mentioning is that its conversion efficiency is as high as 90%, which means that the loss during the energy conversion process is extremely small and the heat generation is correspondingly reduced. This feature is particularly important for equipment that needs to work continuously for a long time.

　　Isolation technology and security features

　　When it comes to power modules, isolation technology is an unavoidable topic. The VI-JW0-MW has an isolation voltage of 3kV, which is crucial for protecting the back-end circuit and user safety. In simple terms, it means there is a good electrical isolation between the input and output. Even if one end malfunctions, it will not affect the normal operation of the other end. This is particularly important in industrial environments.

　　The operating temperature range is from -55℃ to 100℃. This wide temperature adaptability enables the VI-JW0-MW to operate stably in various harsh environments. Whether it is cold outdoor equipment or high-temperature industrial control cabinets, it can maintain excellent performance. The packaging adopts the standard Half-Brick form, with dimensions of 2.28 inches ×2.40 inches ×0.50 inches. This standardized design makes it more convenient for engineers when laying out the PCB.

　　Application scenarios and practical value

　　In practical applications, VI-JW0-MW is mainly used in situations where high-reliability power conversion is required. For instance, control systems in industrial automation equipment, backup power supply systems for communication base stations, and power management for medical devices, etc. These application scenarios have extremely high requirements for the stability and reliability of power supplies. Any power supply fluctuation may lead to equipment failure or even safety accidents.

　　It is particularly worth mentioning that the VI-JW0-MW adopts Vicor's unique zero current switching technology (ZCS), which has been verified through practical applications in over 8 million units, and its maturity and reliability have been fully demonstrated. For engineers, choosing such a product that has been tested by the market for a long time can significantly reduce design risks and shorten the product development cycle.

　　Selection suggestions and precautions

　　When choosing power modules, people should not only look at the power parameters but also take into account the actual application environment. Although VI-JW0-MW is powerful, some of its characteristics should also be noted. For instance, it does not comply with the RoHS standard and contains lead components, which may require special attention in some applications with strict environmental protection requirements.

　　In addition, from the perspective of cost, the reference price of VI-JW0-MW is around 6,000 to 7,000 RMB, which is a mid-to-high-end product. However, for those applications that have extremely high requirements for power supply quality, this investment is worthwhile. After all, the stability of the power supply system is directly related to the reliability of the entire equipment. Once a fault occurs, the loss may far exceed the cost of the power supply itself.

　　Overall, VI-JW0-MW, with its outstanding technical parameters, mature technical solutions and wide application adaptability, provides engineers with a reliable power conversion solution. In today's era where the quality requirements for power supplies are getting higher and higher, choosing a suitable power module is like selecting a reliable "heart" for the entire electronic system, enabling the equipment to operate stably and efficiently.
