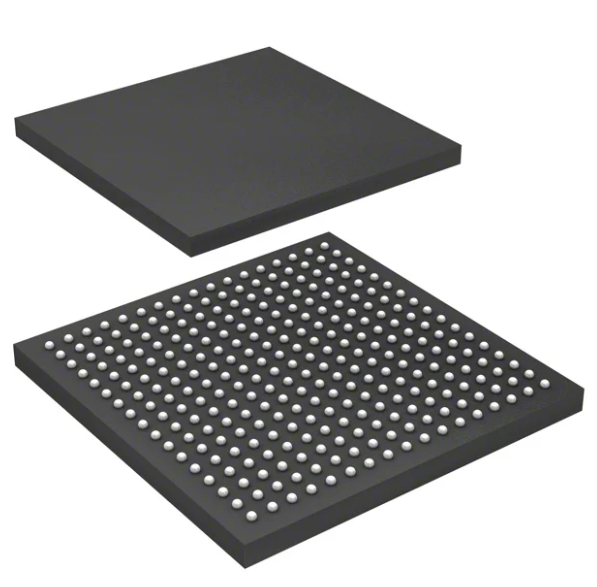

What exactly is the MCIMX283DVM4B? Simply put, it is a high-performance, low-power application processor launched by NXP Semiconductors, specifically optimized for the general embedded industrial control and consumer electronics markets. This processor is like a jack-of-all-trades, capable of meeting the demanding requirements of the industrial control field as well as performing outstandingly in consumer electronics.

　　Core architecture and performance

　　The core of MCIMX283DVM4B is the ARM926EJ-S processor. This architecture should be familiar to everyone, right? Its maximum operating frequency can reach 454MHz, which is a rather good performance among similar products. Even more impressive is that it integrates 128KB of on-chip SRAM, which means that in some small RTOS applications, external RAM is completely unnecessary. This not only saves costs but also simplifies system design.

　　When it comes to power consumption, this processor is really worth looking at. It is equipped with an integrated power management unit (PMU), which includes a three-output DC-DC switching converter and multiple linear regulators. These components not only provide power sequences for the device itself, but also power I/O peripherals such as memory and SD cards, and even support lithium battery charging functions. In simple terms, it is a complete power supply solution that saves designers a lot of trouble.

　　Storage and interface capabilities

　　In terms of memory support, the MCIMX283DVM4B performs quite comprehensively. It supports multiple types of external memory, including mobile DDR, DDR2, LV-DDR2, SLC and MLC NAND Flash. For NAND Flash, it also supports up to 8 devices and provides up to 20-bit BCH ECC error correction functionality, which is particularly useful in applications with high data integrity requirements.

　　The interface configuration is even more eye-catching. It features dual high-speed USB interfaces and also comes with an embedded PHY. Eight universal 12-bit ADC channels and a single 2Msps ADC channel meet various analog signal acquisition requirements; There are also multiple connection ports including UART, SSP, SDIO, SPI, I2C, I2S, etc. This rich interface configuration enables it to easily handle various complex connection requirements.

　　Display and multimedia functions

　　For applications that require a graphical interface, the MCIMX283DVM4B offers an LCD controller with touchscreen support. This means that it can drive various display screens and support touch operation, making it highly suitable for product designs that require human-computer interaction. Although it is not as good as some high-end processors in terms of graphics acceleration, it is sufficient for most embedded applications.

　　Industrial-grade reliability

　　The requirements for electronic products in industrial environments are often more stringent than those in consumer environments. The MCIMX283DVM4B takes this into account and offers extended temperature range options: the consumer version supports -20°C to +70°C, while the industrial version can operate stably within the temperature range of -40°C to +85°C. What's even more remarkable is that NXP has included it in its long-term product supply plan, ensuring at least 15 years of supply since its launch. This is extremely important for industrial products with long life cycles.

　　Application scenarios and selection suggestions

　　Based on these features, the MCIMX283DVM4B is particularly suitable for several types of applications: media and smart energy gateways, handheld printers and scanners, portable medical devices, and various industrial control systems. If you are designing this type of product, this processor is worth serious consideration.

　　When selecting a model, several key points should be noted: First, you need to clarify your application environment and decide whether to choose a consumer-grade or industrial-grade temperature range. Secondly, it is necessary to assess the storage requirements and determine whether external storage is needed and what type it is. Finally, consider the interface requirements and ensure that the interface configuration of the processor can meet the requirements of your system.

　　Development support and ecosystem

　　NXP provides comprehensive software and tool support for the MCIMX283DVM4B, including Linux BSP, Windows CE BSP, and various development tools. There are also abundant document resources, ranging from data sheets to application notes, to help developers get started quickly. This well-developed ecosystem significantly reduces the difficulty of development and shortens the time to market for products.

　　The MCIMX283DVM4B is a well-balanced processor that strikes a perfect balance among performance, power consumption, cost and reliability. It is neither the most powerful nor the cheapest, but in many application scenarios, it might be the most suitable choice.
