Core Parameter Analysis: The Key to Choosing the Right Model

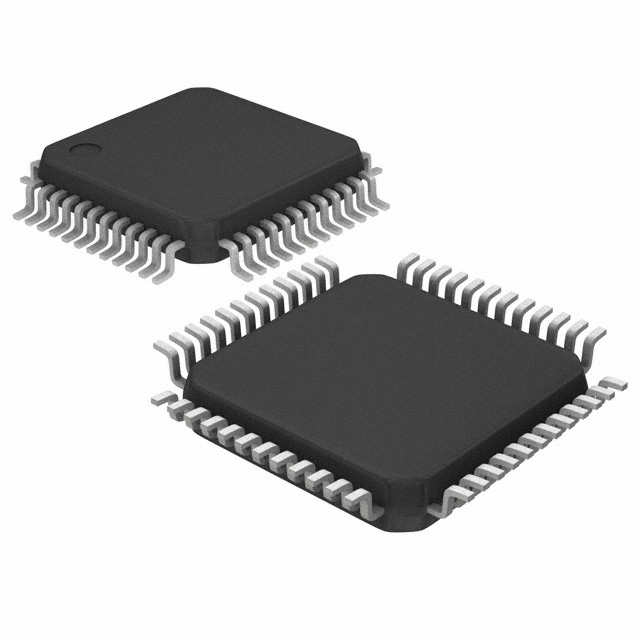

　　It can be seen that when making the selection, we need to focus on several key parameters. The operating temperature range is the primary consideration factor. The L99DZ300GTR supports a junction temperature operation range of -40°C to 175°C, and this wide temperature range ensures stable operation under various extreme weather conditions. The input voltage range covers -0.3V to 28V, which can adapt to the voltage fluctuations of the automotive electrical system.

　　The maximum switching frequency reaches 200kHz (typical value), and this parameter directly affects the control accuracy and response speed. The output current capability is also a key indicator, as it determines the types of loads that can be driven and the power size. As an automotive-grade device, L99DZ300GTR complies with the AEC-Q100 certification standard, which is the gold standard for the reliability of automotive electronic components.

　　Functional features: Not just an ordinary driver chip

　　In simple terms, L99DZ300GTR is like the "brain and nervous system" of the car door. It integrates CAN FD and LIN transceivers and can communicate seamlessly with the entire vehicle network. The chip has a configurable half-bridge driver built in, capable of supporting a 7.5A load (on-resistance 150mΩ) or a 3A load (on-resistance 300mΩ). This flexibility enables the same chip to adapt to different power requirements.

　　In terms of window control, it supports adjusting the speed according to the window position, providing soft start and soft stop functions, and can also reduce noise levels. These intelligent control functions not only enhance the user experience but also reduce mechanical wear and tear and extend the system lifespan.

　　Application scenario matching: What kind of "brain" do you need for your car door?

　　The selection of the door IC depends on the specific application. For the front door application, L99DZ300GTR is the ideal choice as it is specifically designed for automotive front door equipment. If control of the rear door is required, ST also offers alternative models such as L99DZ100G/GP and L99DZ120, which are functionally simplified and have relatively lower costs.

　　In actual design, if a project needs to integrate multiple functions - such as windows, door locks, rearview mirrors, ambient lights, etc., the high integration advantage of L99DZ300GTR becomes very obvious. It can reduce the number of peripheral components, simplify the PCB layout, and enhance system reliability. For designs that aim for space savings and reliability, this chip is very attractive.

　　Common Misconception: Don't let these pitfalls affect your selection.

　　Don't be intimidated by the complicated parameters! In fact, you only need to focus on three aspects: temperature range, current capacity and communication interface. I have seen some engineers blindly pursuing high parameters, which not only increases costs but may also cause electromagnetic compatibility issues.

　　Another misconception is the neglect of thermal design. Although the operating temperature range of the chip is quite wide, a good thermal design is still the guarantee for reliable operation. In the compact door module, a reasonable PCB layout and thermal measures cannot be omitted.

　　Choose the right chip to make the door control more intelligent

　　Looking at the entire automotive electronics market, the door control system is moving towards integration and intelligence. L99DZ300GTR, as a representative product of this trend, with its powerful functional integration and flexible configuration options, provides a complete solution for the electronic control of modern car doors.

　　The selection is not about the higher the price, but rather about the more suitable one. Through clear demand analysis and parameter matching, the L99DZ300GTR often achieves the best balance among performance, cost and reliability. For the design of high-quality door control systems, this chip is indeed worthy of serious consideration.
