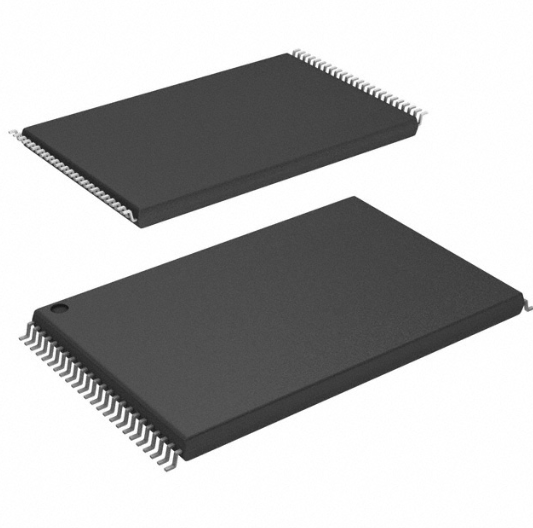

In the field of industrial control, the selection of FPGA memory configuration directly affects the reliability and long-term operational performance of the system. As a member of the Xilinx platform's Flash series, the XCF16PVOG48C is a 16Mb system-on-system programmable configuration PROM, packaged in TSOP-48, and supports a 1.8V operating voltage. It is specifically designed for storing large FPGA configuration bit streams. It supports multiple FPGA configuration modes such as MasterSerial, Slave Serial, Master SelectMAP and Slave SelectMAP. Under the stable external clock drive, the data output rate can reach 33MHz. With a durability of 20,000 programming/erasure cycles and an industrial-grade temperature range of -40 ° C to 85 ° C, it is highly suitable for the harsh environments of industrial control equipment.

　　Key points for designing an adaptation solution

　　When the XCF16PVOG48C is introduced into industrial control equipment, the adaptation plan needs to be comprehensively considered from three aspects: hardware interface, power supply design and configuration mode. First of all, the hardware interface must ensure that it matches the signal level of the target FPGA. The I/O pins of the XCF16PVOG48C are compatible with a voltage range of 1.8V to 3.3V and can be directly connected to most Xilinx FPgas without additional level conversion. Secondly, in terms of power supply design, the power supply voltage range for this chip is 1.65V to 2V, with a typical value of 1.8V. It is recommended to provide clean power and ground planes when laying out the PCB, and place decoupling capacitors with appropriate capacitance values near the power pins to suppress the influence of power noise on the configuration process. In terms of configuration mode selection, industrial control devices typically adopt the MasterSerial mode, where the FPGA actively generates the configuration clock to drive the PROM. This design is simple and reliable. When multiple FPgas or complex configuration processes are required, the Slave SelectMAP mode can also be considered, where the configuration timing is uniformly managed by an external controller.

　　In actual cases, a certain numerical control system manufacturer selected XCF16PVOG48C as the configuration memory for the main FPGA when upgrading the controller. In terms of hardware design, they directly connected the clock and data lines of the PROM to the corresponding pins of the FPGA, while reserving a JTAG interface for online programming and debugging. In terms of software, the Xilinx iMPACT tool is utilized to generate configuration bit streams and burn them into the PROM. After power-on, the FPGA automatically reads the configuration data from the PROM to complete the initialization. The entire adaptation process does not require any modification to the FPGA logic code. It only achieves an upgrade in storage capacity by replacing the configuration storage chip, reserving space for subsequent functional expansion.

　　Stability testing strategy

　　Stability testing is a crucial step to ensure the long-term reliable operation of XCF16PVOG48C in industrial control equipment. The test should cover three aspects: temperature cycling, configuration timing and long-term aging. In the temperature cycling test, the device was placed within the range of -40℃ to 85℃ and cycled to simulate the temperature fluctuations in an industrial site, verifying that the PROM can still normally store and output configuration data under extreme temperatures. The configuration timing test focuses on the power-on configuration process. It monitors the configuration clock, data signals, and the status signals such as INIT_B and DONE of the FPGA through an oscilloscope to ensure that the configuration process is stably completed at the rated clock frequency without any data loss or timing violations.

　　Long-term aging tests usually operate the equipment continuously under rated working conditions to observe the changes in configuration success rate over time. Due to the XCF16PVOG48C's adoption of advanced CMOS NOR flash memory technology and its 20,000 programming/erasing cycles, industrial control equipment generally has a very low configuration update frequency. Therefore, the lifespan of the storage medium itself far exceeds the equipment's usage cycle. The focus of the test should be placed on the stability of the configuration interface. For instance, after long-term operation, check the quality of the PROM output signal to ensure that there is no configuration failure caused by temperature drift or power noise. After introducing this PROM, a certain industrial automation equipment manufacturer conducted a continuous 72-hour high-temperature aging test. During this period, the FPGA was reconfigured every hour, and the configuration success rate was 100%, fully verifying its stability in industrial environments.

　　Common Problems and Solutions

　　In practical applications, engineers often encounter problems such as configuration failure or unstable timing. Most of these problems are related to power quality or signal integrity. The solutions include: adding decoupling capacitors with larger capacitance values to the power pins of the PROM to improve the power ripple; In the case of long-distance routing, appropriately reduce the configuration clock frequency to ensure that the signal establishment and holding time meet the requirements. For multi-FPGA systems, a Daisy chain cascading method can be adopted to connect multiple PROMs in series. One configuration signal can be used to configure multiple FPgas in sequence, simplifying the system design. In addition, the XCF16PVOG48C supports the JTAG boundary scan interface, which enables engineers to directly program and verify the PROM through JTAG during the debugging stage, quickly locating problems.

　　Industrial control equipment has extremely high requirements for reliability. XCF16PVOG48C, with its industrial-grade temperature range, high durability and flexible configuration mode, has become an ideal choice for FPGA configuration storage. Through reasonable adaptation design and comprehensive stability testing, this PROM can operate stably for a long time in various harsh industrial environments, providing a strong guarantee for the reliable start-up and continuous operation of the control system. If you do not fully understand the above content or have any other related questions, please feel free to contact us at any time. Our company specializes in the supply of electronic components and the development of application solutions in the industrial control field. We can help you solve problems such as FPGA configuration, memory selection, system adaptation, and reliability testing. You can contact us at 15928527272.
