In the field of automotive electronics, the reliability of motor drive systems is directly related to the overall vehicle performance and user experience. In high-power inductive load applications, choosing the appropriate driver chip is of vital importance. Allegro's A3941KLPTR-T is a full-bridge controller specifically designed for automotive-grade brushed DC motor drives. It performs exceptionally well in practical applications and deserves close attention.

　　Wide voltage operating range, suitable for harsh automotive environments

　　The voltage of automotive electrical systems fluctuates greatly, ranging from low voltage at startup to high voltage during normal operation, which poses very high requirements for the adaptability of driver chips. The operating voltage range of A3941KLPTR-T covers 5.5V to 50V, which means it can still operate normally even in extreme battery voltage drop conditions. What is even more remarkable is that when the voltage drops to 5.5V, although the gate drive voltage will decrease accordingly, the chip can still operate stably. This wide voltage adaptability is very important in automotive applications.

　　The unique charge pump design ensures driving performance

　　The most outstanding feature of this chip lies in its unique charge pump regulator design. It can provide full gate drive for battery voltages as low as 7V (greater than 10V), while allowing operation when the gate drive voltage drops to 5.5V. The application of bootstrap capacitors provides a power supply voltage higher than the battery voltage for N-channel MOSFETs, while the internal high-voltage side-driven charging pump supports DC (100% load cycle) operation. What does this design mean in practical applications? In simple terms, it means that even under conditions where the voltage fluctuates sharply such as when the car starts or accelerates, the motor can still obtain stable and reliable drive signals.

　　Flexible attenuation mode to meet diverse control requirements

　　The A3941KLPTR-T supports both fast and slow attenuation modes and can operate through diode or synchronous rectification. In the slow decay mode, current recirculation can be achieved through high-side or low-side FETs, and this flexibility provides the possibility for different control strategies. Fast attenuation is suitable for four-quadrant motor control, while slow attenuation is applicable to two-quadrant control or simple inductive load applications. From the perspective of practical project experience, this configurable attenuation mode enables the same chip to adapt to multiple application scenarios, significantly reducing development costs and complexity.

　　A perfect protection mechanism enhances the reliability of the system

　　In automotive electronic systems, the significance of protection functions is self-evident. The A3941KLPTR-T integrates multiple protection functions: under-voltage indication, overheat protection, power bridge fault detection, etc. It is particularly worth mentioning that through the design of adjustable dead time for resistors, the breakdown of power FETs is effectively prevented, which can significantly improve the reliability of the system in practical applications. The integrated diagnostic function not only can promptly indicate the fault status but also protect the power MOSFET under most short-circuit conditions. This design concept reflects a profound understanding of the safety of automotive applications.

　　Automotive-grade quality, suitable for harsh working environments

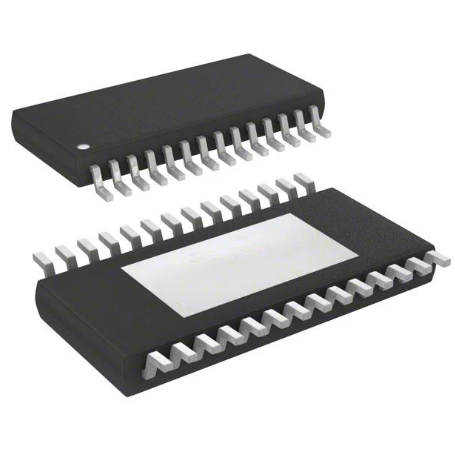

　　As an automotive-grade chip, the A3941KLPTR-T has an operating temperature range of -40°C to 150° C. It is packaged in a 28-pin TSSOP package and features exposed pads to enhance heat dissipation performance. This wide temperature range and excellent heat dissipation design ensure that the chip can still operate stably in high-temperature environments such as the engine compartment. From the perspective of industry applications, this chip has performed outstandingly in applications such as car seat adjustment, wiper systems, and pump drives.
